The solution includes the following components on AfterPay’s end:

• ID Service:
  • Takes the merchant’s API key
  • Issues an authentication token that can be used with the Hosted Fields Server
• Hosted Fields Server:
  • Takes the customer’s authentication token
  • Returns the iFrame code (Hosted Fields Client Library) for the PII field
  • Takes the data that was entered into the hosted PII field
  • Returns the nonce

The nonce can be used for subsequent AfterPay eCommerce API calls, as part of the Checkout Customer block. If the nonce is provided, the identificationNumber is optional.

The nonce can be used only with the same merchant API key as the one that was used to generate it. Otherwise, the eCommerce API will reject the call.

The nonce can be used only for a single Authorize call. Each checkout must be conducted with a new nonce.

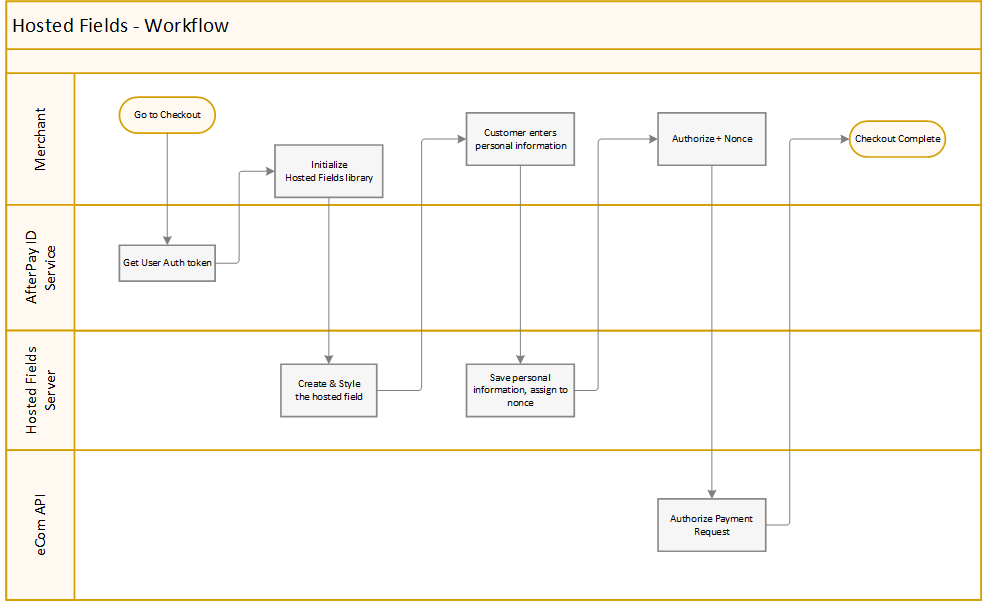

A Hosted Fields transaction using the nonce consists of the following distinct steps:

1. User authentication
2. Javascript library initialization
3. Saving field contents
4. Authorization of transaction

User Authentication

Hosted Fields require authentication to prevent abuse, and to link the nonce record to a particular merchant.

Authentication is achieved by calling the AfterPay ID service via REST API, using the merchant’s API key.

The acquisition of the JWT token must be implemented as a server-to-server call. Your API key should never be exposed to the public.

To reduce the load on the ID service, and improve the customer experience, it is recommended to reuse the token between customers. The token is valid for 48 hours (current default, configurable in AfterPay backend).

Parameter	Value
URL (test environment)	https://hosted-fields-pt.afterpay.nl/
URL (production environment)	https://hosted-fields.afterpay.nl/
HTTP Method	POST
Content type	application/json
Request body	field value service hosted-fields Required apiKey Required

HTTP RESPONSE CODE	DESCRIPTION
OK (200)	JWT token issued
Unauthorized (401)	Invalid or expired API key
Bad Request (400)	Invalid request parameters
Server error (500)	Internal server error, try again

    curl -X POST {{URL}} \
    -H 'Content-Type: application/json' \
    -d '{
    "service": "hosted-fields",
    "apiKey": {{YOUR_API_KEY}}
    }'

    {
    "validUntil": "2019-03-09T09:59:21+00:00",
    "token": {{TOKEN}}
    }

Javascript Library Initialization

Once the merchant has the token, they can initialize the Hosted Fields client library in the customer’s browser/app.

Include javascript library

    <script src="https://hosted-fields-pt.afterpay.nl/hosted-fields.js"></script>

Configure hosted fields client library

    var config = {
    baseAddress: {{URL}},
    token: 'JWT_TOKEN',
    form: document.getElementsByTagName('form')[0],
    fields: [
    {
    'name': 'customer.identificationNumber',
    'element': '#ssn-container',
    'bodyStyle': 'background-color: rgb(255, 0, 255);',
    'fieldStyle': "border: 1px solid #f0f; color 'green'",
    'iframeClassName': 'test-iframe',
    'fieldFocusStyle': 'border: 3px solid #f00;',
    'fieldHoverStyle': 'background-color: #9f9;',
    'iframeTitle': 'iframe__TITLE__SSN',
    'placeholder': 'DDMMYYXXXXX',
    'validationRegex': /[0-9]{2}[0,1][0-9][0-9]{2}[ ]?[0-9]{5}/,
    'numericKeypad': true
    }
    ]
    };

PARAMETER	DESCRIPTION
baseAddress	Used to determine where the Hosted Fields API is hosted. Only relevant for integration against a dev/test environment. In a production setting, this should be removed.
token	JWT Token obtained from the Afterpay ID service
form	Reference to form where the hosted nonce field will be added. Useful if the Checkout button will submit the form. Note: When the value of this setting is null, then no hosted field is created, and the nonce can be retrieved from the afterpayFields.save function’s callback.
fields[].name	JSON path to the field
fields[].element	QuerySelector to the container element where the field iFrame will be created. The element has to be present when afterpayFields.initialize is called.
fields[].bodyStyle	CSS style passed to iFrame body style
fields[].fieldStyle	CSS style passed to text field style
fields[].iframeClassName	CSS class added to created iFrame
fields[].fieldFocusStyle	CSS focus style passed to text field style
fields[].fieldHoverStyle	CSS hover style passed to text field style
fields[].iframeTitle	Value passed to title attribute in iframe tag
fields[].placeholder	Value passed to placeholder attribute in iframe input field
fields[].validationRegex	Regex used for validate field value
fields[].numericKeypad	Boolean type parameter, if TRUE then numeric keypad will be applied on mobile devices
fields[].profile	Unique profile for field type. Profile names consists of three parts, first one is preferred input, second is language and the third country. Supported profiles: Profile name Placeholder 'SSN-sv-SE' 'YYMMDD-XXXX' 'SSN-en-SE' 'YYMMDD-XXXX' 'SSN-nb-NO' 'DDMMYYXXXXX' 'SSN-en-NO' 'DDMMYYXXXXX' 'SSN-fi-FI', 'DDMMYY-XXXX' 'SSN-sv-FI' 'DDMMYY-XXXX' 'SSN-en-FI' 'DDMMYY-XXXX' 'IBAN-de-DE' 'DE00 0000 0000 0000 0000 00' 'IBAN-en-DE' 'DE00 0000 0000 0000 0000 00' 'IBAN-de-AT' 'AT00 0000 0000 0000 0000' 'IBAN-en-AT' 'AT00 0000 0000 0000 0000'
fields[].googleFonts	Font name(-s) that can be fetched from google service (font names separated by |, white-spaces converted to +)

Initialize library

The Hosted Field is initialized via JavaScript. It is recommended to do this after the page has been loaded in the browser.

The client-side library exposes three methods:

METHOD	SIGNATURE / PARAMETERS	DESCRIPTION
afterpayFields.initialize	config	Initializes the solution with the provided configuration
afterpayFields.onError	callback function	Exposes errors received. It is highly recommended to set up error handling as the first thing in the execution line, since initialization can throw an error.
afterpayFields.save	callback function	Saves the fields and returns the nonce.
afterpayFields.validate	callback function	Checks whether a field(-s) matches a regex in config and returns overall status and invalid field names. If nothing is specified in fields[].validationRegex, it uses a predefined AfterPay rexeg, indicated by the fields[].profile parameter.
afterpayFields.onchange	callback function	Checks whether a field(-s) matches a validation rules based on profile name in config and returns overall status.

    document.addEventListener("DOMContentLoaded", function () {
        afterpayFields.onError = function (err, message) {
            console.error(err, message);
        }
        afterpayFields.initialize(config);
    });

ERROR CODES	VALUE	DESCRIPTION
ERROR	1	Generic error, check browser console
NO_FIELDS	2	No fields configured, configuration passed to initialization does not have the fields property set.
NO_TOKEN	3	No authentication token passed in configuration
SAVE_ERROR	4	Error saving fields, check browser console
NO_CONTAINER	5	Unable to find the container element where the field is to be created. Check spelling or existence of the container.

Validate Field Values

Validate function will work only if validationRegex parameter is initialized in config.

        afterpayFields.validate(function (isValid, invalidFields) {
            ...
        });

If isValid equals to TRUE: then invalidFields array is empty otherwise invalid field names will be populated.

onChange event

onChange event will return status object.

    afterpayFields.onChange = function (status) {
        console.log(JSON.stringify(status));
    }

Validation errors

ERROR CODES	DESCRIPTION
400.000	Input invalid
400.001	Too short
400.002	Too long
400.003	Too young
400.004	Too old
400.005	Checksum incorrect
400.006	Bank not found

Status object will vary on configuration, validationRegex or profile is required to get validation result. Profiles give more options, for example 'maskedInput', 'bic' and 'bankName' for IBAN.

Save Field Contents

Saving of the field contents has to be explicit:

    afterpayFields.save(function (nonce) {console.log('saved!', nonce);});

If there are multiple Hosted Fields in a form, their contents are saved in the browser’s local storage before being sent to the Hosted Fields Server.

Authorization of transaction

To complete the transaction, the merchant calls the Afterpay API authorization endpoint with small modifications.

Please refer to official documentation on how to make authorization call (https://developer.afterpay.io/guidelines). The main difference is the addition of a new request field, “nonce”. If this field is present, the customer’s identificationNumber is not required.Authorization request

    {
        "payment": {
            ...
        },
        "customer": {
            ...
        },
        "order": {
            ...
        },
        "nonce": "abcd1234defg", //ReceivedfromafterpayFields.savecallback
    }
